Case No. 15  Product shot

Three named cameras, one job

cameras=["Front", "Top", "Iso"] renders the same frame from each and returns one PNG per camera.

● Product shot · CyclesRTX PRO 6000 · Tokyo
Product shots from three named cameras in one job (cameras=[...])
Cycles1200 × 1200Samples 128PNG still

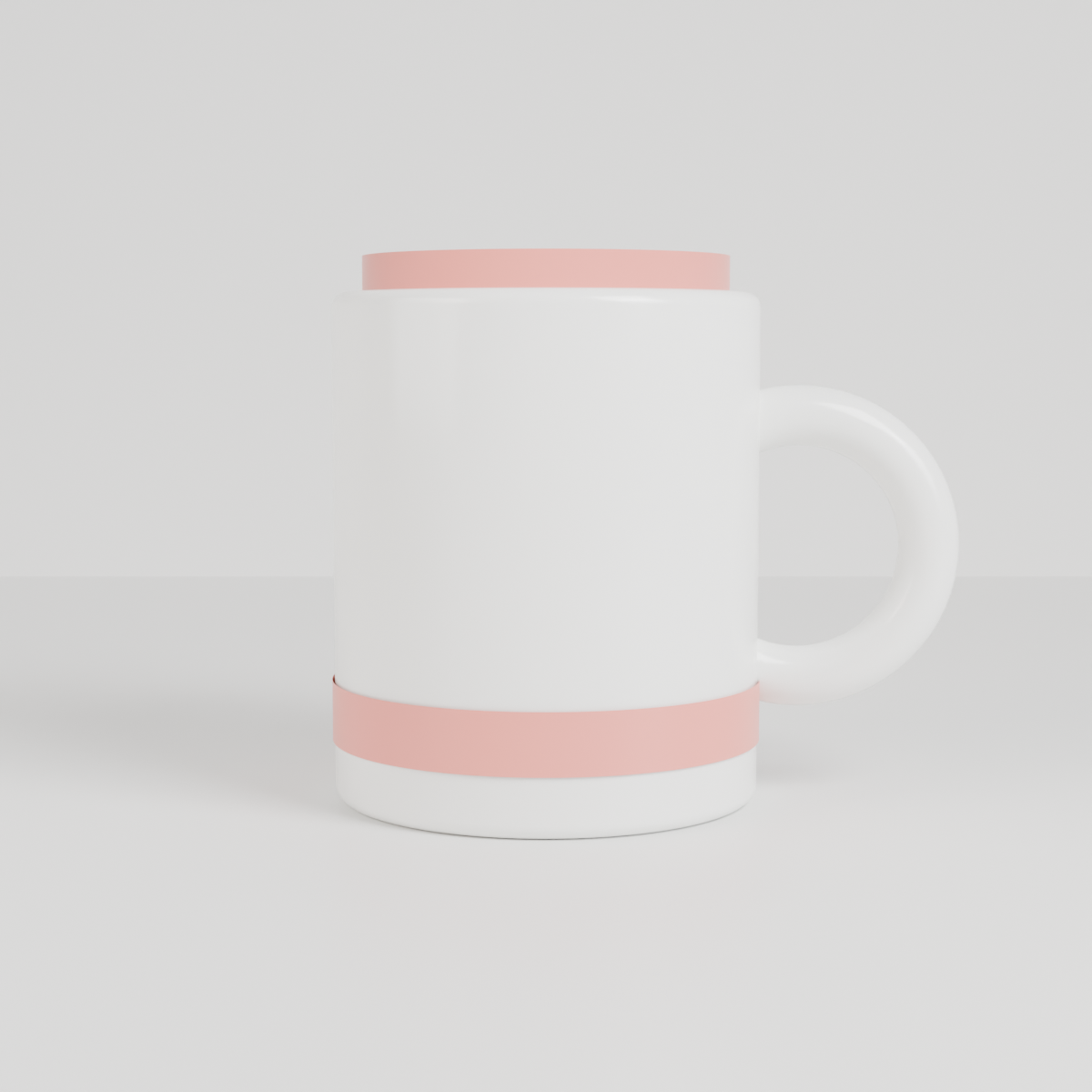

Fig. — Product shots from three named cameras in one job (cameras=[...]). A real render from the production GPU.
The short answer

This product set renders one ceramic mug from three named cameras in a single JANCTION Render job by passing cameras=["Front", "Top", "Iso"]. The service returns one PNG per camera, and render_preview with the same list tiles them in one sheet. It took 13.6 GPU seconds on the production GPU, 1.4 JPY at 0.1 JPY per GPU-second.

What is in the frame

The same mug from the front, from above and from a three-quarter angle. Catalogues and marketplaces usually ask for exactly this set.

How the scene is built

The scene defines three camera objects by name. One job renders the frame from each; camera_files in the result maps each name to its image.

Adapt it

Add a fourth camera for a detail shot. For a real model rather than a script, the product preset does a similar job automatically (see the alarm clock case).

1.4 JPY for this render. The free welcome credit of a new key covers about 73 of them, with no card.

Render this example with your AI

ChatGPT · Claude · Grok · Perplexity

Use JANCTION Render (MCP server https://render.janction.jp/mcp) to render this example: render_preview(scene_url="https://render.janction.jp/samples/ex15_product_cameras.py"). Then suggest how to change the colors, shapes and camera for my own subject. Ask me before the final render.

Each link opens the app with the text below filled in (if it is not, copy and paste it). If JANCTION Render is not connected in that app yet, add https://render.janction.jp/mcp as a connector first.

Blender warnings

  • cameras: frame 1 rendered from Front, Top, Iso (frame_0001.. in that order)
  • environment preset 'studio' replaced the scene's world (HDRI lighting)

The script (bpy, runs as is)

ex15_product_cameras.py. It builds the scene, the camera and the frame range; resolution, samples, denoising and the GPU are set by the service.

"""JANCTION Render example 15: a ceramic mug from three named cameras in one job (product shots, cameras=[...]).

Reproduce: render_final(scene_url="https://render.janction.jp/samples/ex15_product_cameras.py",
                        cameras=["Front", "Top", "Iso"], width=1200, height=1200, samples=128, environment="studio")
The scene defines three camera objects; the service renders the same frame from each and returns one PNG
per camera (camera_files maps the names). render_preview with the same cameras tiles them in one sheet.
"""
import math
import random

import bpy
from mathutils import Vector

for ob in list(bpy.data.objects):
    bpy.data.objects.remove(ob, do_unlink=True)
scene = bpy.context.scene
scene.frame_start = 1
scene.frame_end = 1
scene.render.fps = 24
random.seed(15)


def material(name, color, roughness=0.5, metallic=0.0, **inputs):
    mat = bpy.data.materials.new(name)
    mat.use_nodes = True
    bsdf = mat.node_tree.nodes["Principled BSDF"]
    bsdf.inputs["Base Color"].default_value = (*color, 1.0)
    bsdf.inputs["Roughness"].default_value = roughness
    bsdf.inputs["Metallic"].default_value = metallic
    for key, value in inputs.items():
        bsdf.inputs[key].default_value = value
    return mat


def smooth(ob):
    for p in ob.data.polygons:
        p.use_smooth = True
    return ob


def add(op, name, mat=None, **kw):
    getattr(bpy.ops.mesh, op)(**kw)
    ob = bpy.context.object
    ob.name = name
    if mat is not None:
        ob.data.materials.append(mat)
    return ob


def text(body, name, mat, location, size=1.0, extrude=0.02, rotation=(math.pi / 2, 0, 0), align="CENTER"):
    cu = bpy.data.curves.new(name, type="FONT")
    cu.body = body
    cu.size = size
    cu.extrude = extrude
    cu.align_x = align
    ob = bpy.data.objects.new(name, cu)
    scene.collection.objects.link(ob)
    ob.location = location
    ob.rotation_euler = rotation
    ob.data.materials.append(mat)
    return ob


def look_at(ob, target):
    ob.rotation_euler = (Vector(target) - ob.location).to_track_quat("-Z", "Y").to_euler()


def camera(location, target, lens=50.0, name="Camera", active=True, fstop=None, focus=None):
    data = bpy.data.cameras.new(name)
    data.lens = lens
    if fstop is not None:
        data.dof.use_dof = True
        data.dof.aperture_fstop = fstop
        data.dof.focus_distance = focus if focus is not None else (Vector(target) - Vector(location)).length
    cam = bpy.data.objects.new(name, data)
    scene.collection.objects.link(cam)
    cam.location = location
    look_at(cam, target)
    if active:
        scene.camera = cam
    return cam


def light(name, kind, location, energy, target=None, size=1.0, color=(1.0, 1.0, 1.0)):
    data = bpy.data.lights.new(name, kind)
    data.energy = energy
    data.color = color
    if kind == "AREA":
        data.size = size
    ob = bpy.data.objects.new(name, data)
    scene.collection.objects.link(ob)
    ob.location = location
    if target is not None:
        look_at(ob, target)
    return ob


def world(color=(0.02, 0.02, 0.03), strength=1.0):
    w = bpy.data.worlds.new("World")
    w.use_nodes = True
    bg = w.node_tree.nodes["Background"]
    bg.inputs[0].default_value = (*color, 1.0)
    bg.inputs[1].default_value = strength
    scene.world = w
    return w

ceramic = material("Ceramic", (0.93, 0.93, 0.9), roughness=0.18)
accent = material("Accent", (0.85, 0.25, 0.2), roughness=0.3)
floor = material("Floor", (0.84, 0.84, 0.82), roughness=0.35)
wall = material("Wall", (0.9, 0.9, 0.88), roughness=0.8)
add("primitive_plane_add", "Floor", floor, size=20)
back = add("primitive_plane_add", "Backdrop", wall, size=20, location=(0, 4, 5))
back.rotation_euler = (math.pi / 2, 0, 0)
body = add("primitive_cylinder_add", "Mug", ceramic, radius=0.42, depth=1.0, location=(0, 0, 0.5), vertices=96)
bev = body.modifiers.new("Bevel", "BEVEL")
bev.width = 0.03
bev.segments = 6
smooth(body)
inner = add("primitive_cylinder_add", "Inside", accent, radius=0.36, depth=0.9, location=(0, 0, 0.62), vertices=96)
smooth(inner)
handle = add("primitive_torus_add", "Handle", ceramic, major_radius=0.26, minor_radius=0.06, location=(0.5, 0, 0.5),
             major_segments=64, minor_segments=24)
handle.rotation_euler = (math.pi / 2, 0, 0)
smooth(handle)
band = add("primitive_cylinder_add", "Band", accent, radius=0.425, depth=0.12, location=(0, 0, 0.18), vertices=96, end_fill_type="NOTHING")
smooth(band)
light("Key", "AREA", (2.5, -2.5, 3.5), 350, target=(0, 0, 0.5), size=2.0)
light("Fill", "AREA", (-3.0, -1.5, 2.0), 120, target=(0, 0, 0.5), size=2.5)
camera((0.0, -4.2, 0.9), (0.0, 0.0, 0.5), lens=70, name="Front", active=True)
camera((0.0, -0.01, 4.5), (0.0, 0.0, 0.5), lens=50, name="Top", active=False)
camera((3.2, -3.2, 2.4), (0.0, 0.0, 0.5), lens=60, name="Iso", active=False)

Questions about this case

How do I render several camera angles in one Blender job?

Name the cameras in the scene and pass cameras=[...] to render_final. JANCTION Render returns one image per camera.

Can the preview show all angles at once?

Yes. render_preview with the same cameras list tiles them in one image.
