Case No. 5  Materials

Six material balls: glass to car paint

Glass, gold, skin, emission, car paint and plastic. Each one is a Principled BSDF with a few inputs changed.

● Materials · CyclesRTX PRO 6000 · Tokyo
Six material balls: glass, gold, skin, emission, car paint, plastic
Cycles1920 × 1080Samples 128PNG still

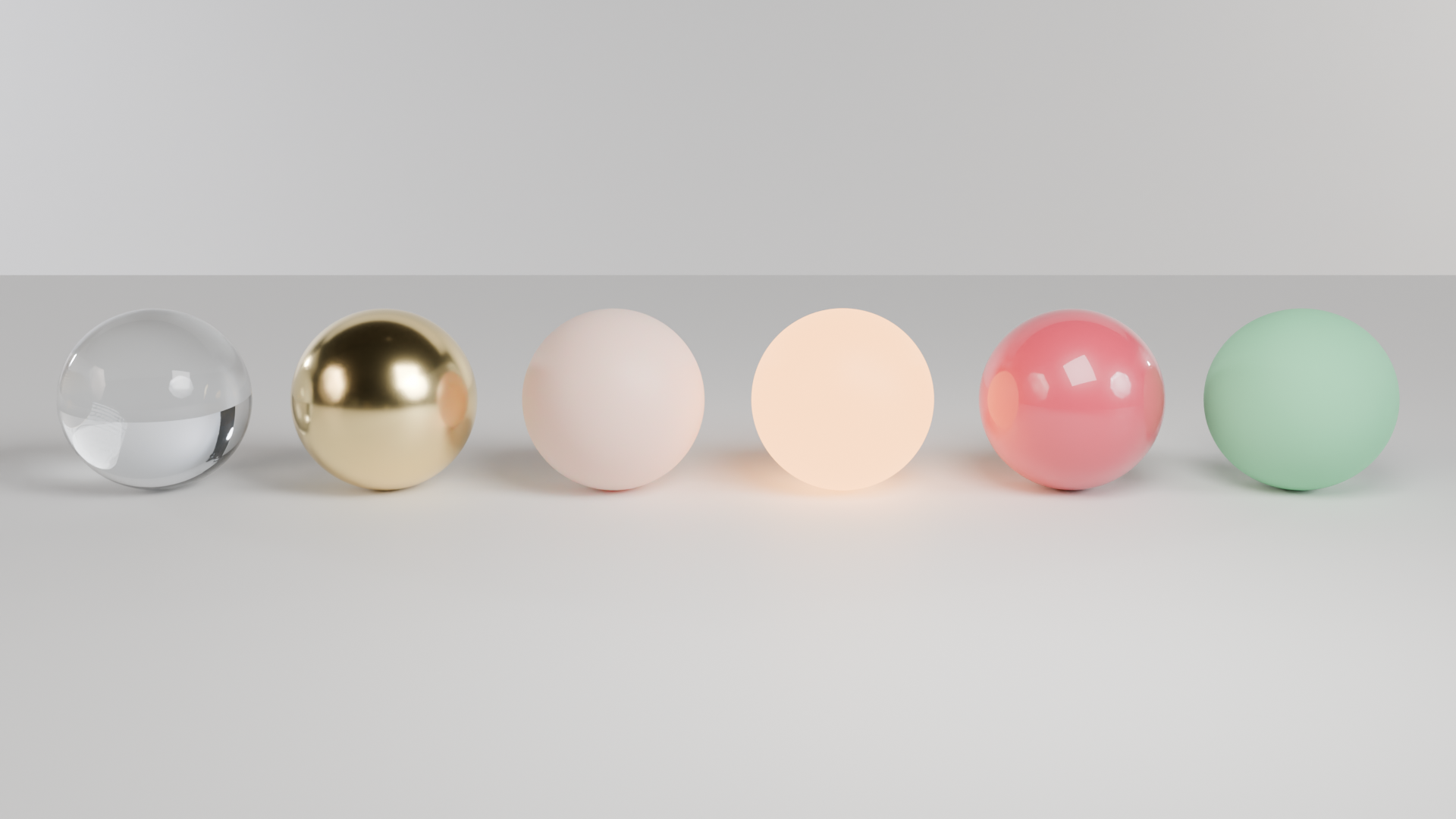

Fig. — Six material balls: glass, gold, skin, emission, car paint, plastic. A real render from the production GPU.
The short answer

This material study renders six balls (glass, gold, skin, emission, car paint and plastic) on a JANCTION GPU under the studio preset. Each ball is one Principled BSDF with a few inputs changed, so any of them can be copied into another scene. It took 7.0 GPU seconds on the production GPU, 0.7 JPY at 0.1 JPY per GPU-second.

What is in the frame

Six spheres in a row: clear glass, polished gold, subsurface skin, a glowing emitter, a coated car paint and matte plastic. Material balls are how artists check a shader before it goes on a model.

How the scene is built

Every material is the same Principled BSDF node with different values for roughness, metallic, transmission, subsurface, coat or emission. Nothing is baked or imported, so the script stays short and the result is easy to reproduce.

Adapt it

Copy the ball you need into your own scene, or ask your AI to add a seventh for a material you are testing and preview only that frame.

0.7 JPY for this render. The free welcome credit of a new key covers about 142 of them, with no card.

Render this example with your AI

ChatGPT · Claude · Grok · Perplexity

Use JANCTION Render (MCP server https://render.janction.jp/mcp) to render this example: render_preview(scene_url="https://render.janction.jp/samples/ex05_material_balls.py"). Then suggest how to change the colors, shapes and camera for my own subject. Ask me before the final render.

Each link opens the app with the text below filled in (if it is not, copy and paste it). If JANCTION Render is not connected in that app yet, add https://render.janction.jp/mcp as a connector first.

Blender warnings

  • environment preset 'studio' replaced the scene's world (HDRI lighting)

The script (bpy, runs as is)

ex05_material_balls.py. It builds the scene, the camera and the frame range; resolution, samples, denoising and the GPU are set by the service.

"""JANCTION Render example 05: six material balls (glass, gold, skin, emission, car paint, plastic) under the studio preset.

Reproduce: render_final(scene_url="https://render.janction.jp/samples/ex05_material_balls.py",
                        width=1920, height=1080, samples=128, environment="studio")
Each ball is one Principled BSDF with a few inputs changed; copy the one you need.
"""
import bpy
from mathutils import Vector

for ob in list(bpy.data.objects):
    bpy.data.objects.remove(ob, do_unlink=True)
scene = bpy.context.scene
scene.frame_start = 1
scene.frame_end = 1


def material(name, color, roughness=0.5, metallic=0.0, **inputs):
    mat = bpy.data.materials.new(name)
    mat.use_nodes = True
    bsdf = mat.node_tree.nodes["Principled BSDF"]
    bsdf.inputs["Base Color"].default_value = (*color, 1.0)
    bsdf.inputs["Roughness"].default_value = roughness
    bsdf.inputs["Metallic"].default_value = metallic
    for key, value in inputs.items():
        bsdf.inputs[key].default_value = value
    return mat


def smooth(ob):
    for p in ob.data.polygons:
        p.use_smooth = True
    return ob


def add(op, name, mat=None, **kw):
    getattr(bpy.ops.mesh, op)(**kw)
    ob = bpy.context.object
    ob.name = name
    if mat is not None:
        ob.data.materials.append(mat)
    return ob


def look_at(ob, target):
    ob.rotation_euler = (Vector(target) - ob.location).to_track_quat("-Z", "Y").to_euler()


def camera(location, target, lens=50.0):
    data = bpy.data.cameras.new("Camera")
    data.lens = lens
    cam = bpy.data.objects.new("Camera", data)
    scene.collection.objects.link(cam)
    cam.location = location
    look_at(cam, target)
    scene.camera = cam
    return cam


def light(name, kind, location, energy, target=None, size=1.0, color=(1.0, 1.0, 1.0)):
    data = bpy.data.lights.new(name, kind)
    data.energy = energy
    data.color = color
    if kind == "AREA":
        data.size = size
    ob = bpy.data.objects.new(name, data)
    scene.collection.objects.link(ob)
    ob.location = location
    if target is not None:
        look_at(ob, target)
    return ob


balls = [
    ("Glass", material("Glass", (0.95, 0.98, 1.0), roughness=0.02, **{"Transmission Weight": 1.0, "IOR": 1.45})),
    ("Gold", material("Gold", (1.0, 0.78, 0.35), roughness=0.18, metallic=1.0)),
    ("Skin", material("Skin", (0.86, 0.62, 0.52), roughness=0.5,
                      **{"Subsurface Weight": 1.0, "Subsurface Radius": (1.0, 0.2, 0.1), "Subsurface Scale": 0.3})),
    ("Emission", material("Emission", (0.0, 0.0, 0.0), roughness=0.5,
                          **{"Emission Color": (1.0, 0.42, 0.12, 1.0), "Emission Strength": 6.0})),
    ("CarPaint", material("CarPaint", (0.62, 0.04, 0.08), roughness=0.38,
                          **{"Coat Weight": 1.0, "Coat Roughness": 0.03})),
    ("Plastic", material("Plastic", (0.2, 0.6, 0.32), roughness=0.75)),
]
floor = material("Floor", (0.8, 0.8, 0.78), roughness=0.55)
add("primitive_plane_add", "Floor", floor, size=30)
for i, (name, mat) in enumerate(balls):
    ball = add("primitive_uv_sphere_add", name, mat, radius=0.62, segments=96, ring_count=48,
               location=(-3.9 + i * 1.56, 0.0, 0.62))
    smooth(ball)

light("Key", "AREA", (2.0, -4.0, 4.5), 500, target=(0, 0, 0.6), size=3.0)
camera((0.0, -9.5, 2.4), (0.0, 0.0, 0.55), lens=35)

Questions about this case

How do I preview Blender materials without a GPU?

Send a scene with material balls to JANCTION Render and ask for render_preview. It returns a tiled image in a few GPU seconds with a verdict on exposure and framing.

Does JANCTION Render support Cycles and EEVEE?

Yes. Cycles on NVIDIA GPUs is the default; pass engine="eevee" to switch a job to EEVEE.
