An isometric island diorama

An orthographic camera turns a handful of primitives into a tidy game-style diorama.

● Environment · CyclesRTX PRO 6000 · Tokyo
Isometric island diorama (orthographic camera)
Cycles1200 × 1200Samples 128PNG still

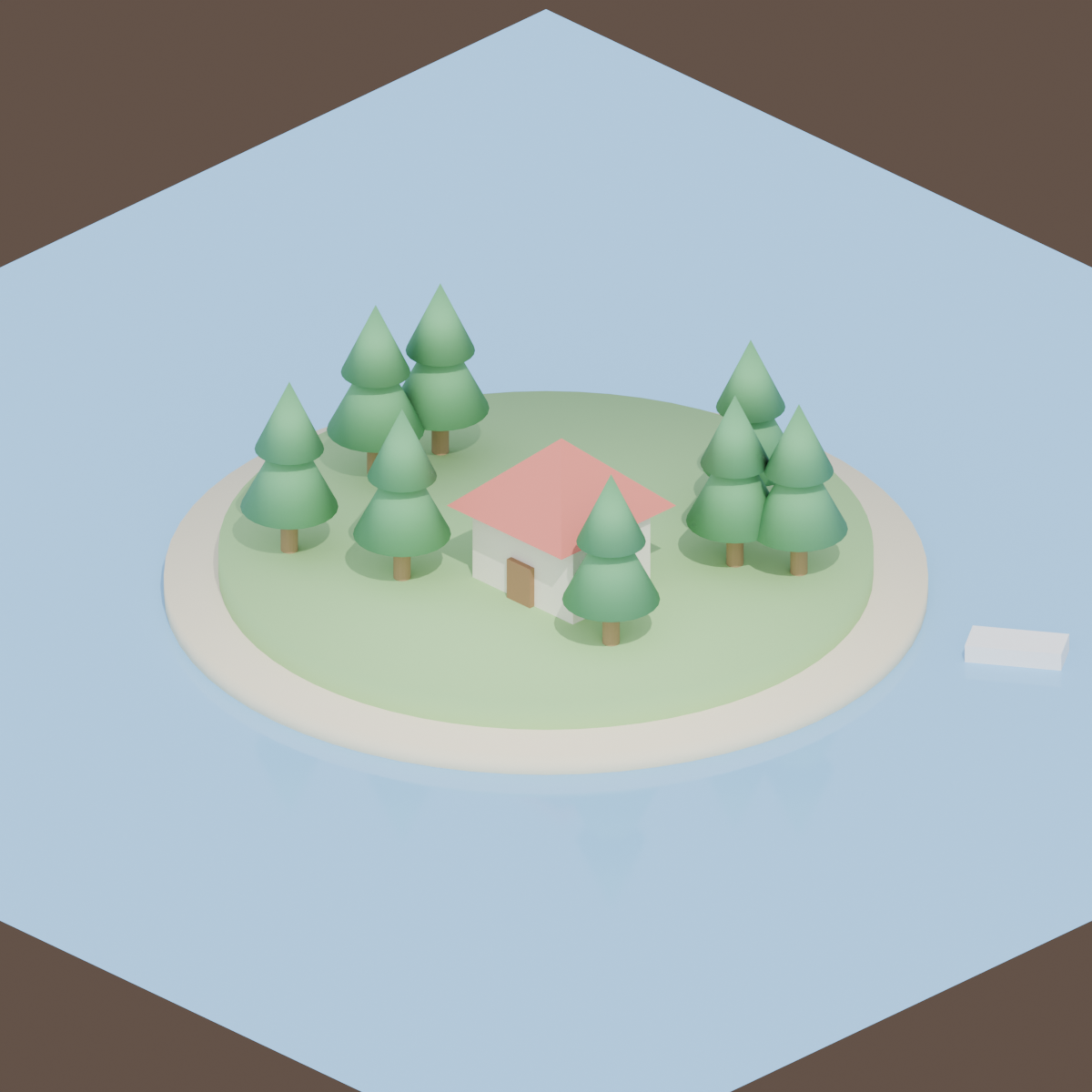

Fig. — Isometric island diorama (orthographic camera). A real render from the production GPU.
The short answer

This isometric island was rendered as a square still on a JANCTION GPU with an orthographic camera (cam.data.type = "ORTHO"). ortho_scale sets how much of the island is in view, and the overcast preset gives it even light. It took 4.7 GPU seconds on the production GPU, 0.5 JPY at 0.1 JPY per GPU-second.

What is in the frame

A round island of grass with low-poly trees and a small house, floating on pale water. Isometric dioramas are popular for game art, app illustrations and explainer graphics.

How the scene is built

The camera is orthographic, so parallel lines stay parallel and nothing shrinks with distance. ortho_scale controls the crop. The overcast preset keeps the shadows soft so the shapes read clearly.

Adapt it

Ask your AI to add props or change the season, keep the camera untouched, and the series stays consistent from image to image.

0.5 JPY for this render. The free welcome credit of a new key covers about 214 of them, with no card.

Render this example with your AI

ChatGPT · Claude · Grok · Perplexity

Use JANCTION Render (MCP server https://render.janction.jp/mcp) to render this example: render_preview(scene_url="https://render.janction.jp/samples/ex08_isometric_island.py"). Then suggest how to change the colors, shapes and camera for my own subject. Ask me before the final render.

Each link opens the app with the text below filled in (if it is not, copy and paste it). If JANCTION Render is not connected in that app yet, add https://render.janction.jp/mcp as a connector first.

Blender warnings

  • environment preset 'overcast' replaced the scene's world (HDRI lighting)

The script (bpy, runs as is)

ex08_isometric_island.py. It builds the scene, the camera and the frame range; resolution, samples, denoising and the GPU are set by the service.

"""JANCTION Render example 08: an isometric island diorama with an orthographic camera (one square still).

Reproduce: render_final(scene_url="https://render.janction.jp/samples/ex08_isometric_island.py",
                        width=1200, height=1200, samples=128, environment="overcast")
The camera is orthographic (cam.data.type = "ORTHO"); ortho_scale sets how much of the island is in view.
"""
import math
import random

import bpy
from mathutils import Vector

for ob in list(bpy.data.objects):
    bpy.data.objects.remove(ob, do_unlink=True)
scene = bpy.context.scene
scene.frame_start = 1
scene.frame_end = 1


def material(name, color, roughness=0.5, metallic=0.0, **inputs):
    mat = bpy.data.materials.new(name)
    mat.use_nodes = True
    bsdf = mat.node_tree.nodes["Principled BSDF"]
    bsdf.inputs["Base Color"].default_value = (*color, 1.0)
    bsdf.inputs["Roughness"].default_value = roughness
    bsdf.inputs["Metallic"].default_value = metallic
    for key, value in inputs.items():
        bsdf.inputs[key].default_value = value
    return mat


def smooth(ob):
    for p in ob.data.polygons:
        p.use_smooth = True
    return ob


def add(op, name, mat=None, **kw):
    getattr(bpy.ops.mesh, op)(**kw)
    ob = bpy.context.object
    ob.name = name
    if mat is not None:
        ob.data.materials.append(mat)
    return ob


def look_at(ob, target):
    ob.rotation_euler = (Vector(target) - ob.location).to_track_quat("-Z", "Y").to_euler()


def light(name, kind, location, energy, target=None, size=1.0, color=(1.0, 1.0, 1.0)):
    data = bpy.data.lights.new(name, kind)
    data.energy = energy
    data.color = color
    if kind == "AREA":
        data.size = size
    ob = bpy.data.objects.new(name, data)
    scene.collection.objects.link(ob)
    ob.location = location
    if target is not None:
        look_at(ob, target)
    return ob


water = material("Water", (0.25, 0.55, 0.85), roughness=0.08)
sand = material("Sand", (0.88, 0.8, 0.58), roughness=0.9)
grass = material("Grass", (0.36, 0.62, 0.26), roughness=0.9)
trunk = material("Trunk", (0.4, 0.26, 0.14), roughness=0.9)
leaves = material("Leaves", (0.15, 0.45, 0.2), roughness=0.8)
walls = material("Walls", (0.95, 0.9, 0.8), roughness=0.8)
roof = material("Roof", (0.75, 0.2, 0.15), roughness=0.7)
door = material("Door", (0.35, 0.2, 0.1), roughness=0.8)
boat = material("Boat", (0.9, 0.9, 0.9), roughness=0.6)

add("primitive_plane_add", "Water", water, size=16, location=(0, 0, 0.1))
shore = add("primitive_cylinder_add", "Shore", sand, radius=3.5, depth=0.3, vertices=64, location=(0, 0, 0.15))
smooth(shore)
island = add("primitive_cylinder_add", "Island", grass, radius=3.0, depth=0.6, vertices=64, location=(0, 0, 0.3))
smooth(island)

rng = random.Random(11)
for i in range(8):
    a = rng.uniform(0, 2 * math.pi)
    r = rng.uniform(1.4, 2.6)
    x, y = r * math.cos(a), r * math.sin(a)
    if abs(x - 0.6) < 1.1 and abs(y + 0.4) < 1.0:
        continue
    add("primitive_cylinder_add", "Trunk%d" % i, trunk, radius=0.08, depth=0.6, vertices=16, location=(x, y, 0.9))
    cone = add("primitive_cone_add", "Leaves%d" % i, leaves, vertices=24, radius1=0.45, depth=0.9, location=(x, y, 1.5))
    smooth(cone)
    cone = add("primitive_cone_add", "LeavesTop%d" % i, leaves, vertices=24, radius1=0.32, depth=0.7, location=(x, y, 2.0))
    smooth(cone)

house = add("primitive_cube_add", "House", walls, size=1, location=(0.6, -0.4, 1.0))
house.scale = (1.3, 1.0, 0.8)
top = add("primitive_cone_add", "Roof", roof, vertices=4, radius1=1.05, depth=0.7, location=(0.6, -0.4, 1.75),
          rotation=(0, 0, math.pi / 4))
front = add("primitive_cube_add", "Door", door, size=1, location=(0.6, -0.93, 0.8))
front.scale = (0.3, 0.06, 0.4)
dinghy = add("primitive_cube_add", "Boat", boat, size=1, location=(3.9, 2.2, 0.17), rotation=(0, 0, 0.6))
dinghy.scale = (0.9, 0.4, 0.2)

light("Sun", "SUN", (6.0, -4.0, 9.0), 3.0, target=(0, 0, 0.5), color=(1.0, 0.97, 0.9))

data = bpy.data.cameras.new("Camera")
data.type = "ORTHO"
data.ortho_scale = 10.0
cam = bpy.data.objects.new("Camera", data)
scene.collection.objects.link(cam)
cam.location = (10.0, -10.0, 8.2)
look_at(cam, (0.0, 0.0, 0.6))
scene.camera = cam

Questions about this case

How do I render an isometric scene in Blender?

Set the camera type to orthographic (cam.data.type = "ORTHO"), aim it at the classic isometric angles and use ortho_scale to set the framing.

Can JANCTION Render output square images?
